High lumen flat surface mounted led panel light 18W white frame 4000K 90 - 260V AC

Name: High lumen flat surface mounted led panel light 18W white frame 4000K 90 260V AC
Brand: ZLONE
Price: 1 USD

Buy cheap High lumen flat surface mounted led panel light 18W white frame 4000K 90 - 260V AC product

Brand Name : ZLONE

Model Number : ZLRP2254018WS

Certification : CE ROHS TUV FCC

Place of Origin : China

MOQ : NONE

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50000pcs/Month

Delivery Time : 5-7working days

Packaging Details : 9.4kgs/ CTN 20pcs/CTN 500*25*500mm /CTN 15kgs/ CTN

Material : Aluminmiun + PMMA

Color : White Frame

Wattage : 18W

CRI : >80

Lumenius Flux : 1600lm

Protection Grade : IP44

Input Voltage : 90-260VAC 50/60Hz

Installation Way : Surface Mounting

Contact Now

flat surface mounted led panel 18W, white frame ceiling flat panel 4000K

Main parameters:

Model Number	ZLRP2254018WS	Installation	Surface Mounting	View Angle:	120°
Brand	ZLONE	Size:	Φ225*40mm	Power factor:	>0.95
Lamp Power(W):	18W	Luminous Efficiency	85lm/w	Driver Type	Isolated Constant current driver
Luminous Flux(lm):	1450-1650LM	CRI	>80	Input Voltage:	85V~265V AC 50-60Hz
CCT	2700-6500K	LED QTY:	90pcs	Warranty :	2Years
IP Grade	IP40	LED Light Source:	SMD2835	LED Brand	EPISTAR
Working Lifetime	50000Hours	Working Temperature	-25℃ - +55℃	Certification:	CE, EMC, LVD, RoHS,TUV,SGS

Features:

surface mounted led panel light flat
1.High lumens 1200lm
2.SMD2835 60pcs led chips
3.Dimmable Supported
4.18W Round / Flat shape

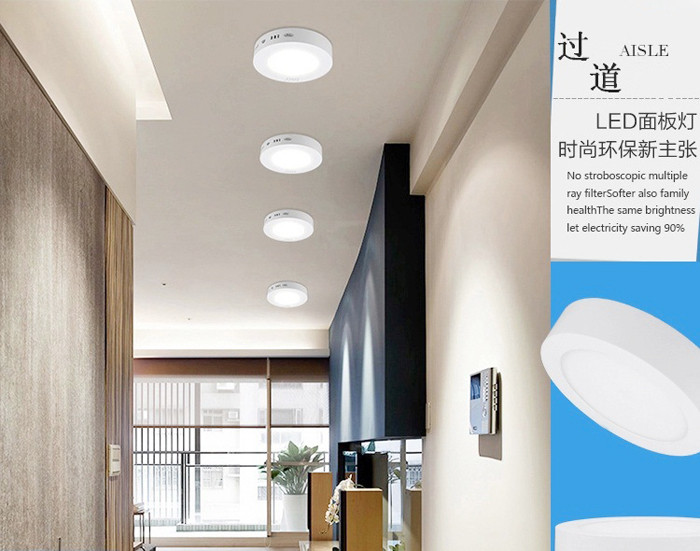

Photos of 18W Flat

Available Models:

Product Name &Size	Model	CCT	Input Voltage	Lumen Flux	CRI	View Angle	Led Brand & Type	Note
6W LED Surface Mounted Panel Φ120*40mm	ZLRP120406WR ZLRP120406WS	3000K 4000K 6000K	100-260V AC 50/60Hz	360-420LM	>80	120°	SMD 2835 EPISTAR	IP40 CE/RoHs Surface mount WHITE Frame 2-Year Warranty
12W LED Surface Mounted Panel Φ170*40mm	ZLRP1704012WR ZLRP1704012WS	3000K 4000K 6000K	100-260V AC 50/60Hz	880-960LM	>80	120°	SMD 2835 EPISTAR	IP40 CE/RoHs Surface mount WHITE Frame 2-Year Warranty
18W LED Surface Mounted Panel Φ225*40mm	ZLRP2254018WR ZLRP2254018WS	3000K 4000K 6000K	100-260V AC 50/60Hz	1450-1650 LM	>80	120°	SMD 2835 EPISTAR	IP40 CE/RoHs Surface mount WHITE Frame 2-Year Warranty
24W LED Surface Mounted Panel Φ300*40mm	ZLRP3004024WR ZLRP3004024WS	3000K 4000K 6000K	100-260V AC 50/60Hz	2000-2100LM	>80	120°	SMD 2835 EPISTAR	IP40 CE/RoHs Surface mount WHITE Frame 2-Year Warranty
48W LED Surface Mounted Panel Φ600*40mm	ZLRP6004048WR ZLRP6004048WS	3000K 4000K 6000K	100-260V AC 50/60Hz	3300-3500 LM	>75	120°	SMD 2835 EPISTAR	IP40 CE/RoHs Surface mount WHITE Frame 3-Year Warranty

Installation guidance
Application of surface mounted led panel lights:
1. Hotels
2. Conference/Meeting rooms
3. Factories & Offices
4. Commercial Purposes
5. Residential / Institution Buildings
6. Schools, Colleges & Universities
7. Hospitals
