Dia170mm 12W Suspended Surface Mounted LED Panel Light 980lm for Hotels , Factories

Name: Dia170mm 12W Suspended Surface Mounted LED Panel Light 980lm for Hotels Factories
Brand: ZLONE
Price: 1 USD

Buy cheap Dia170mm 12W Suspended Surface Mounted LED Panel Light 980lm for Hotels , Factories product

Brand Name : ZLONE

Model Number : ZLRP1704012WS

Certification : CE ROHS TUV FCC

Place of Origin : China

MOQ : NONE

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 50000pcs/Month

Delivery Time : 5-7working days

Packaging Details : 5.9kgs/ CTN 20pcs/CTN 380*250*380mm /CTN

Name : Flat surface mounted panel

Power : 12W

Brand : ZLONE

Original : China

Cert : CE ROHS FCC TUV SGS

Protection Grade : IP44

Input Voltage : 90-260VAC 50/60Hz

Installation Way : Surface Mounting

Lumen : 980lm

CRI : >80

Contact Now

Dia170mm 12W flat surface mounted panel lighting, ceiling mounted panel 12W

Features:

surface mounted led panel light flat
1.High lumens 1100lm
2.SMD2835 60pcs led chips epistar
3.Dimmable Supported
4.12W Round / Flat shape 170mm, surface mounting installtion

Model Number	ZLRP1704012WS	Installation	Surface Mounted	View Angle:	120°
Brand	ZLONE	Size:	Φ170*40mm	Power factor:	>0.95
Lamp Power(W):	12W	Luminous Efficiency	85lm/w	Driver Type	Isolated Constant current driver THD<20%
Luminous Flux(lm):	980-1100LM	CRI	>80	Input Voltage:	85V~265V AC 50-60Hz
CCT	3000K Warm White 4000K Natural White 6000K Cold White	LED QTY:	60pcs	Warranty :	2Years
IP Grade	IP44	LED Light Source:	SMD2835	LED Brand	EPISTAR
Working Lifetime	50000Hours	Working Temperature	-25℃ - +55℃	Certification:	CE, EMC, LVD, RoHS,TUV,SGS

Inside structure of 12W panel

Isolated constant current driver with EMC/LVD , THD<15%

Intergrated Sphere Test result 3000K Warm White:

Dia170mm 12W Suspended Surface Mounted LED Panel Light 980lm for Hotels , Factories

More wattages and sizes available:

Product Name &Size	Model& Picture	CCT	Input Voltage	Lumen Flux	CRI	View Angle	Led Brand & Type	Note
6W LED Surface Mounted Panel Φ120*40mm	ZLRP120406WR ZLRP120406WS	3000K 4000K 6000K	100-260V AC 50/60Hz	360-420LM	>80	120°	SMD 2835 EPISTAR	IP40 CE/RoHs Surface mount WHITE Frame 2-Year Warranty
18W LED Surface Mounted Panel Φ225*40mm	ZLRP2254018WR ZLRP2254018WS	3000K 4000K 6000K	100-260V AC 50/60Hz	1450-1650 LM	>80	120°	SMD 2835 EPISTAR	IP40 CE/RoHs Surface mount WHITE Frame 2-Year Warranty
24W LED Surface Mounted Panel Φ300*40mm	ZLRP3004024WR ZLRP3004024WS	3000K 4000K 6000K	100-260V AC 50/60Hz	2000-2100LM	>80	120°	SMD 2835 EPISTAR	IP40 CE/RoHs Surface mount WHITE Frame 2-Year Warranty
48W LED Surface Mounted Panel Φ600*40mm	ZLRP6004048WR ZLRP6004048WS	3000K 4000K 6000K	100-260V AC 50/60Hz	3300-3500 LM	>75	120°	SMD 2835 EPISTAR	IP40 CE/RoHs Surface mount WHITE Frame 3-Year Warranty

Installation guidance
Dia170mm 12W Suspended Surface Mounted LED Panel Light 980lm for Hotels , Factories

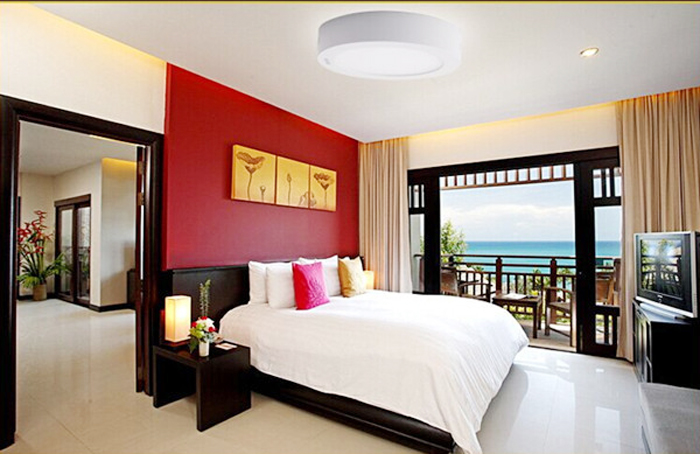

Application of surface mounted led panel lights:
1. Hotels
2. Conference/Meeting rooms
3. Factories & Offices
4. Commercial Purposes
5. Residential / Institution Buildings
6. Schools, Colleges & Universities
7. Hospitals
Dia170mm 12W Suspended Surface Mounted LED Panel Light 980lm for Hotels , Factories
