Dimmable SGS Surface Mounted Led Panel Light 48W 600mm Diameters 3800lm IP44

Name: Dimmable SGS Surface Mounted Led Panel Light 48W 600mm Diameters 3800lm IP44
Brand: ZLONE
Price: 1 USD

Brand Name : ZLONE

Model Number : ZLRP6004048WR

Certification : CE ROHS TUV SGS SAA FCC

Place of Origin : China

MOQ : none

Price : negotiable

Payment Terms : T/T, Western Union

Supply Ability : 50000pcs/Month

Delivery Time : 7-10working days

Packaging Details : 3pcs/CTN 720*25*720mm /CTN N.W: 4.8KGS G.W:18kgs/ CTN

Size : Φ600*40mm

Power : 48W

Lumen : 3600-3800LM

CRI : 80Ra

CCT : 3000K,4000K,6000K

Warranty : 3 Years

LED Brand : EPISTAR SMD2835

Lifespan : 50000Hours

IP Grade : IP44

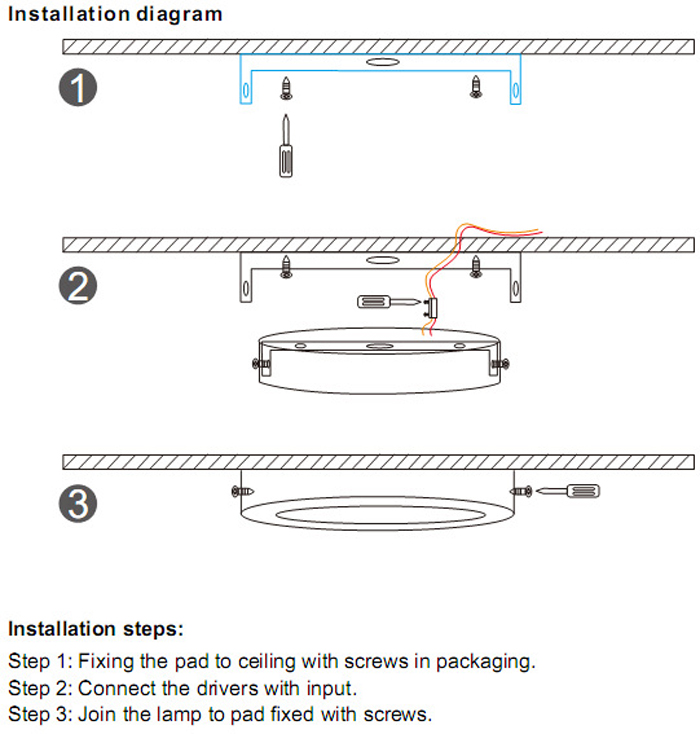

Installation : Surface Mounting

Contact Now

SGS Surfaced Mounted Round Led Panel Lighting 48W 600mm Diameters 3800lm Good price IP44

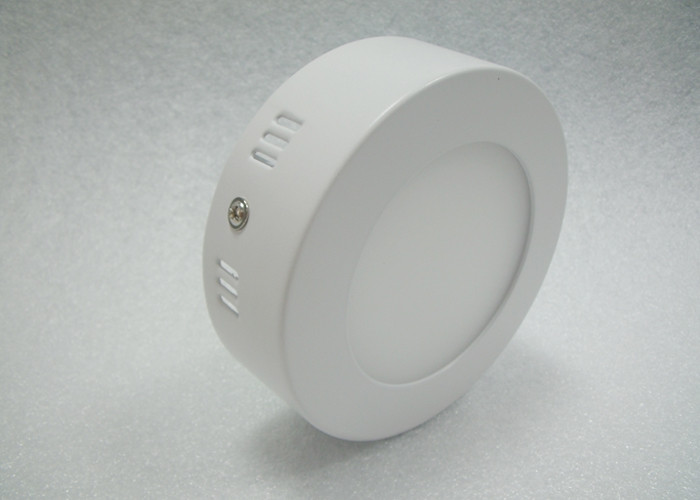

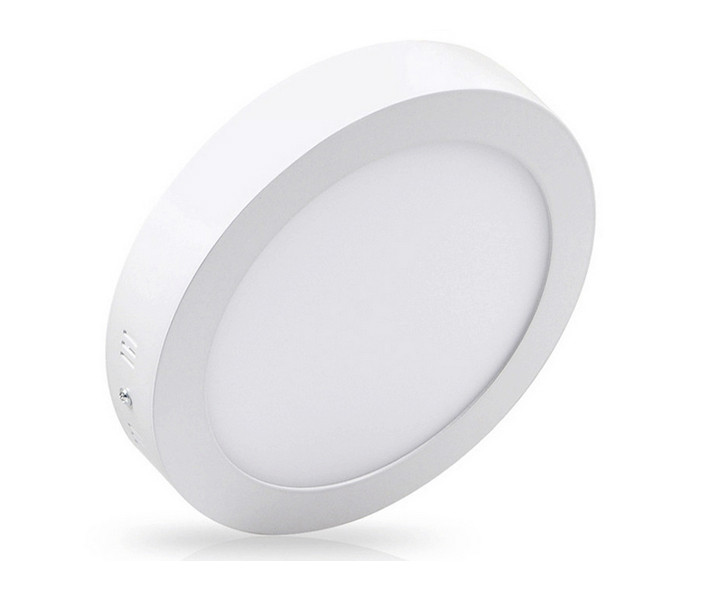

Front View:

Dimmable SGS Surface Mounted Led Panel Light 48W 600mm Diameters 3800lm IP44

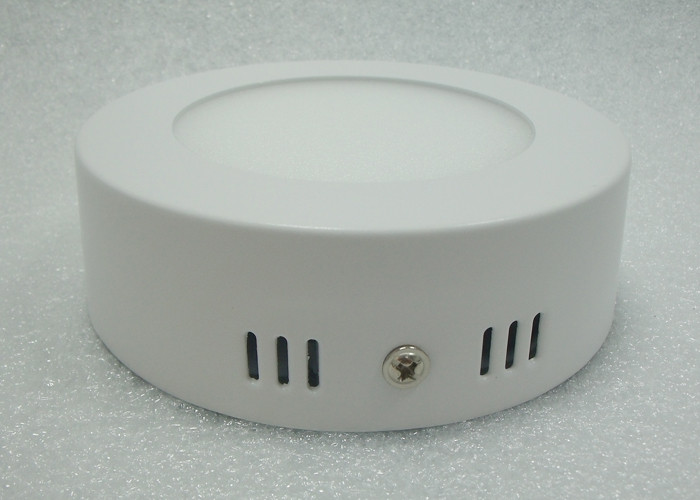

Back View:

600mm round surface mount panel 48W specf.

Part No.	ZLRP6004048WR
Optics Parameters	Light Source	288pcs SMD2835 EPISTAR
	Luminous Flux(lm)	3600-3800LM
	CCT(K)	warmwhtie(3000K)/white(6000K)/ Neturalwhite4000K
	CRI(Ra)	more than 80Ra
	Beam Angle	120 degree
	Light Attenuation ratio (%)	less than 3% in 30,000Hrs
	Lifespan (Hrs)	more than 50,000Hrs
Electric Parameters	Input Voltage(V)	85-265Vac
	Frequency(Hz)	50/60 Hz
	Input Current(mA)	950mA (@ 220 Vac )
	Total Power(W)	48W
	Power Factor	0.95
	Turn-on Time(S)	less than 0.05 S (@ 220Vac)
	Dielectric Voltage Withstand Test	3750Vac/1min
Structure Parameters	Material	Aluminum+ PMMA
	Size(mm)	600mm*40mm
	Net Weight(g)	4.7KG
	Water Proof(IP)	Indoor Use Only IP44
Integrated Parameters	Operating Temperature	-40 ~ +55 Centigrade
	Storage Humidity	0% ~ 95%R.H.
	Dimmable	Optional

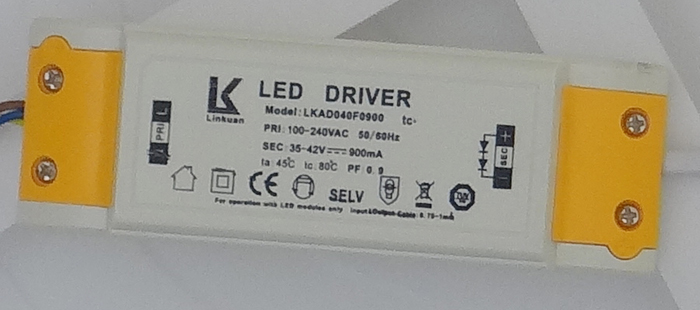

About the Driver:

Driver used Isolated Constant Current Driver with PF>0.95, THD<15%, CE/RoHS approval

3-Year warranty.

Dimmable SGS Surface Mounted Led Panel Light 48W 600mm Diameters 3800lm IP44

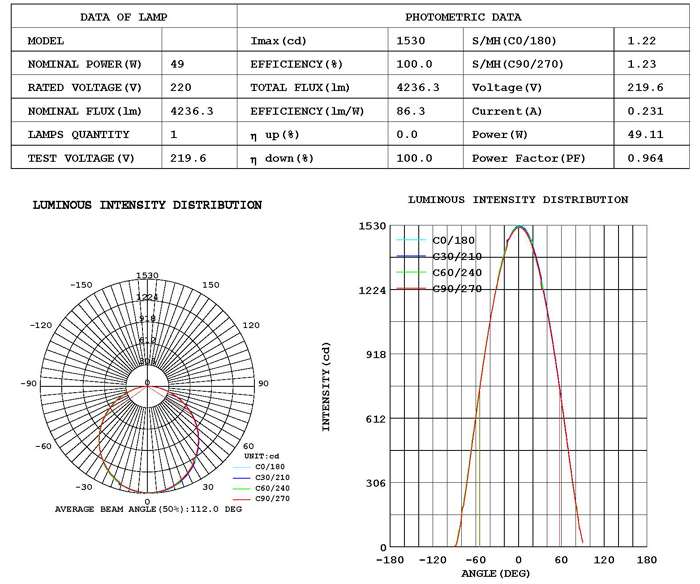

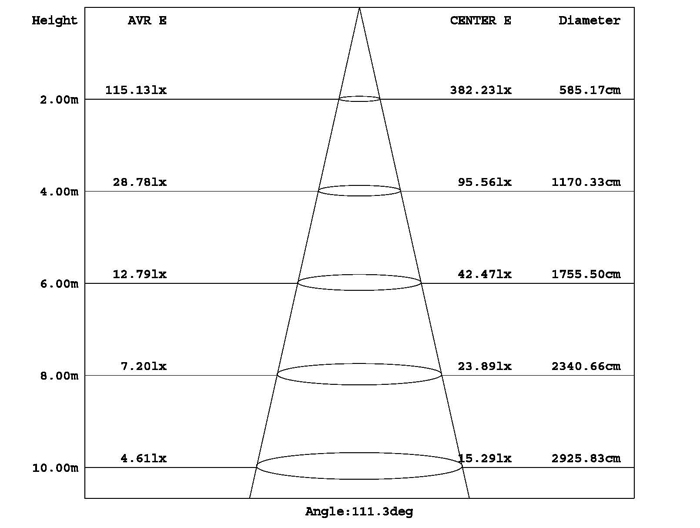

IES Test result:

Dimmable SGS Surface Mounted Led Panel Light 48W 600mm Diameters 3800lm IP44

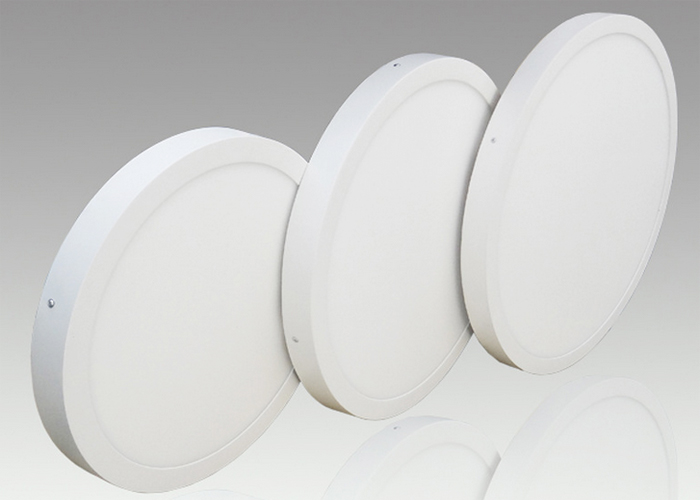

48W 600mm round surface mounted panels in production/aging test.

Dimmable SGS Surface Mounted Led Panel Light 48W 600mm Diameters 3800lm IP44

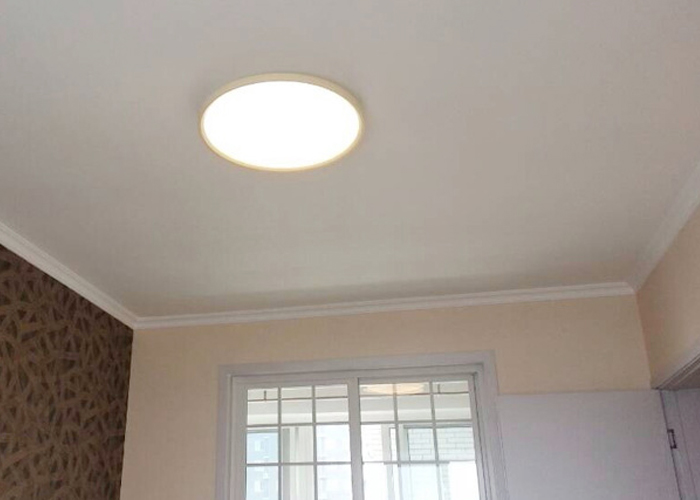

Application:

1.lighting projects, banks, hotels, schools, bookstores, sports and other lighting
2.Exhibition,Fashionable dress act ;
3.Furniture, lighting, commercial lighting, museums, exhibition lighting
4.High-class stores,shopping malls;
5. Restaurant,Shopping Mall;

Dimmable SGS Surface Mounted Led Panel Light 48W 600mm Diameters 3800lm IP44
