High brightness Round / Square Surface Mounted LED Panel Light 24W 2000LM 4000K CRI80

SHENZHEN ZLONE LIGHTING CO.,LTD
Contact Now

High brightness Round / Square Surface Mounted LED Panel Light 24W 2000LM 4000K CRI80

Brand Name : ZLONE

Model Number : ZLRP3004024WR

Certification : CE ROHS TUV SGS SAA FCC

Place of Origin : China

MOQ : none

Price : negotiable

Payment Terms : L/C, T/T, MoneyGram, , Western Union

Supply Ability : 50000pcs/Month

Delivery Time : 7-10working days

Packaging Details : 20pcs/CTN 700*25*700 /CTN 22kgs/ CTN

Power : 24W

Size : Φ300*40mm

Lumen : 2000-2100LM

Shape : Round surface mounting

Warranty : 3 Year

certificate : CE ROHS TUV FCC SAA SGS

Protection Grade : IP44

Lifetime usage : 50000Hours

Contact Now

CE&RoHS Square Surface Mounted Dimmable Led Panel SMD2835 24W 2000LM 4000K CRI80





Product structure:



High brightness Round / Square Surface Mounted LED Panel Light 24W 2000LM 4000K CRI80





Specification:



Part No.

ZLRP3004024WR

Optics

Parameters



Light Source

120pcs SMD2835 EPISTAR

Luminous Flux(lm)

2100LM

CCT(K)

 warmwhtie(3000K)/white(6000K)/

Neturalwhite4000K

 CRI(Ra)

more than 80Ra

Beam Angle

120 degree

Light Attenuation ratio (%)

less than 3% in 30,000Hrs

Lifespan (Hrs)

more than 50,000Hrs

Electric

Parameters

Input Voltage(V)

85-265Vac

Frequency(Hz)

50/60 Hz

 Input Current(mA)

86mA (@ 220 Vac )

Total Power(W)

24W

Power Factor

0.95

 Turn-on Time(S)

less than 0.05 S (@ 220Vac)

Dielectric Voltage Withstand Test

3750Vac/1min

Structure

Parameters

Material

Aluminum+ PMMA

Size(mm)

300mm*40mm

Net Weight(g)

125g

Water Proof(IP)

Indoor Use Only IP44

Integrated

Parameters

Operating Temperature

-40 ~ +55 Centigrade

Storage Humidity

 0% ~ 95%R.H.

Dimmable

 Optional







Feature LED surface panel light   :



1.New generation LED Panel Light adopts qualified super bright LED as light source, which is stable, long life and no UV & IR emission.
2.The anodized aluminum frame is stylish and fashionable with everlasting color.
3.It is powered by low voltage constant current driver, which is safety, energy saving and long life.
4.LED Panel light is the ideal replacement for traditional grid lights and fluorescent tubes. Moreover, the Panel light creates extremely harmonies and uniform lights, which conventional light never achieved.

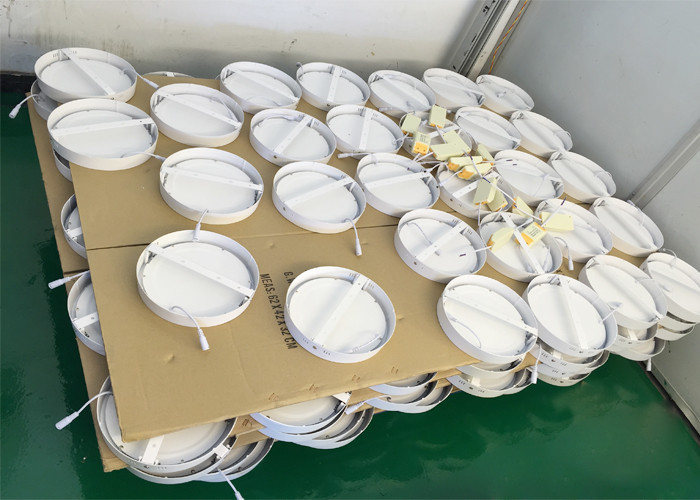

Product Photos:







More sizes available:



High brightness Round / Square Surface Mounted LED Panel Light 24W 2000LM 4000K CRI80







Isolated Constand Current Driver used with High Voltage/Current Protection and PF>0.5



High brightness Round / Square Surface Mounted LED Panel Light 24W 2000LM 4000K CRI80





 Supplier of WESTINGHOUSE:

High brightness Round / Square Surface Mounted LED Panel Light 24W 2000LM 4000K CRI80

High brightness Round / Square Surface Mounted LED Panel Light 24W 2000LM 4000K CRI80
