Ultra Thin RF Dimmable LED Panel Light 85LM / W CRI83 , LED panel grow light

SHENZHEN ZLONE LIGHTING CO.,LTD
Contact Now

Ultra Thin RF Dimmable LED Panel Light 85LM / W CRI83 , LED panel grow light

  • 1
  • 2

Brand Name : ZLONE

Model Number : ZLP060640WWS

Certification : CE ROHS TUV SGS SAA

Place of Origin : China

MOQ : none

Price : negotiable

Payment Terms : Western Union, T/T

Supply Ability : 20000pcs/month

Delivery Time : 5-7working days

Packaging Details : N.W:4.8kgs 5pcs/CTN G.W: 24KGS Size:71*71*25cm/CTN

Power : 40W

Size : 595x595x10mm

Input Voltage : 90-265Vac 50/60Hz

Dimmable : color temperature dimmable

Lumenous Fux : 3600LM

Lifespan : 50000hours

Installation : False-ceiling, suspended, mounted

Color : White ,Silver

Contact Now

40W 600x600 Led Panel Ultra Thin RF Dimmable CCT Dimmable 85LM/W CRI83





Features:

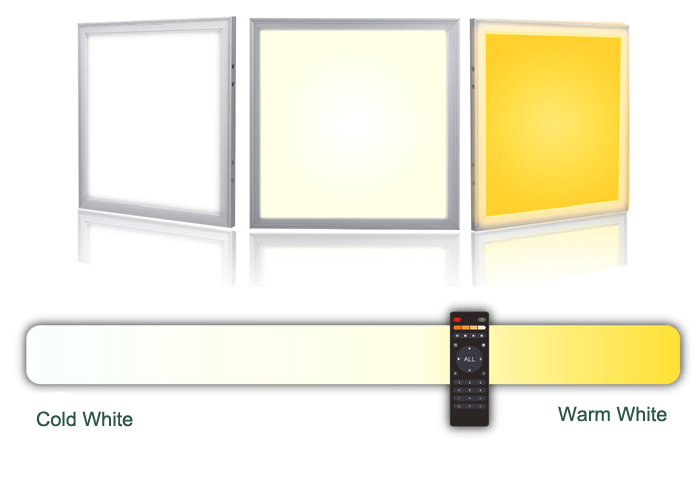

1. CCT dimmable led panel,color temperature and brightness dimmable LED panel light

2. Material: superior aluminum alloy and high quality acrylic plate (PMMA).

3. Light source: low power EPISTAR SMD LEDs (placed in the edge of the plate)

4. Color Rendering Index CRI >80

5. Uniformity of light color: ≥ 90%

6.  Lifespan: ≥ 50000h (8 years using validity)

7. Beam angle: 120 degree

8. Color temperature: 2700K-7000K (Optional, according to your requirement)

9. Ambient temperature: -20℃~85℃

Edge-lit methods, with advanced light guide technology.

Low heat and more environment protection.

No stroboscopic, no pollution, long lifespan, low luminous decay.

Quickly start (0.01second) and the light is natural and soft, appearance is exquisite,

CE, FCC, RoHS approved, with 3 year quality warranty.





Our advantages of CCT Dimmable led panel

  • Conforming to CE,RoHs.UL ETL,TUV
  • Environment-friendly and no UV or IR radiation.
  • Extruded aluminum is good at heat dissipation, surface temperature usually stay below 65°.
  • Wide range of available operating voltage and low consumption.

Applications of color temperature Dimmable led panel


            1. Factories, Hospital Lighting

            2. Warehouse, Supermarket Lighting

            3. Schools, Offices, Residential Area Lighting

            4. Hotels, Conference, Meeting rooms Lighting





Main Parameter:



Model Number ZLP060640WS Item Type: flat panel led lighting Brand ZLONE
Size: 595x595x10mm Input Voltage : 85V~265V AC Working Lifetime 50000Hours
Lamp Power(W): 40W Lamp Luminous Efficiency 85lm/w Warranty : 3Years
Lamp Luminous Flux(lm): 3600LM LED QTY: 242pcs LED Light Source: SMD2835
CRI (Ra>): 80 Working Temperature -25℃ - +55℃ LED Brand EPISTAR
Color Temperature(CCT): 2700~7000K Power factor: >0.95 IP Rating: IP44
View Angle: 120° Driver Type Isolated Constant current driver Certification: CE, EMC, LVD, RoHS,TUV,SGS



More wattages for option:

Model & Picture Power  Dimension Input Voltage Body Material LED Brand/
Type
CCT

Lumen

Flux

CRI Note
ZLP060636WS 36W   595*595*10
(mm)
100-260V AC   50/60Hz

TUV/CE SAA CB approved Constant Current Driver
6063 Aluminium &
PMMA
(Japan)
SMD 2835
EPISTAR
WW:3000K
NW:4000K
CW:6000K

3000-

3300LM

>80 IP Rating:IP44
PF>0.95
Beam Angle: 120°

3 Years Warranty
CE/RoHS
Life:50,000hrs
N.W:4.8kgs
5pcs/CTN
G.W: 24KGS
71*71*25cm/CTN
White/Silver Frame
ZLP060640WS  40W 3400-3600LM
ZLP060654WS 54W 4600-5000LM
ZLP060672WS

72W

5800-6400LM





Ultra Thin RF Dimmable LED Panel Light 85LM / W CRI83 , LED panel grow lightUltra Thin RF Dimmable LED Panel Light 85LM / W CRI83 , LED panel grow light
